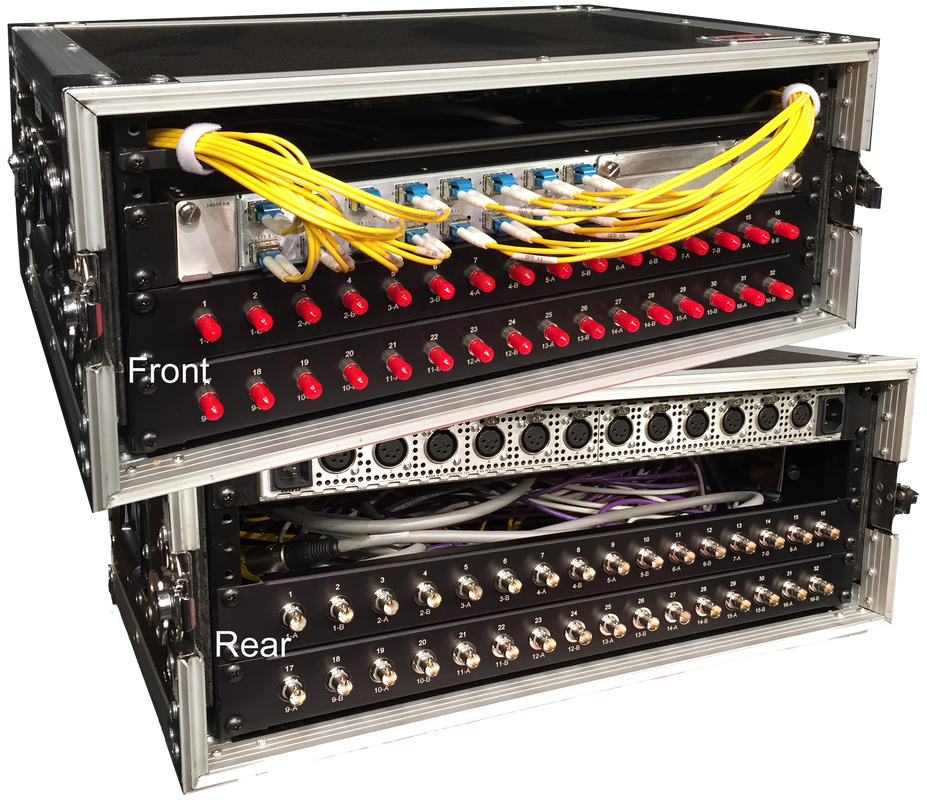

The Fiber Optic I/O is a custom solution built around the Evertz 3405 system.  Designed for rapid deployment and integration, this 4RU rack houses up to 32 fiber <-> copper paths, can be reconfigured on the fly, and brings all the connections out to clearly labeled, custom engraved panels. The Evertz SFP optical signals are compatible with a wide range of other manufacturer's devices, allowing users to mix and match hardware to better suit the needs of the production.

  • Standard rack configurations include: 32 Tx, 32 Rx & 16 Tx/16Rx.  Custom configurations available.
Key Features
  • Robust Evertz 3405 platform
  • All components hot-swappable in the field
  • 3405 series SFP's are able to handle ASI, SDI, HD-SDI and 3G digital video signals, as well as other signal rates up to 3 Gig on non-reclocked versions (e.g. MADI).
  • Custom interface panels for easy access to connectors
  • Dual 4 pin XLR inputs for redundant power
  • Deep lids allow all internal connections to remain in place during transport.
  • When configured with the Evertz 3405 PS-6 power supply, additional Fiber I/O's or other 12vdc equipment can be powered from the same, fully redundant PSU.

Stratos HD Fiber Optic Converter

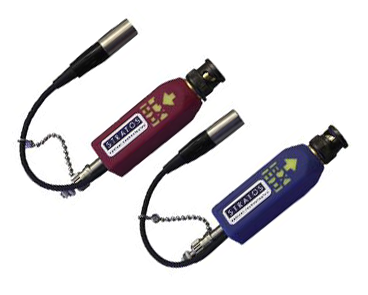

Stratos HDSDI Fiber Optic Transmitter Receiver

Stratos Fiber VMC Video Media Converter modules offer extended distance over singlemode fiber for high-speed serial digital video links for multi-protocol HD/SD/DVB/ASI video applications with data transfer rates up to 1.485 Gbps.
Key Features
  •  SMPTE 292M Compliant (up to 1.485Gbps)
  •  SMPTE 259M/297M/305M Compliant (up to 540Mbps)
  •  DVB/ASI Compliant
  •  ATSC/SMPTE 310M Compliant (19.4 to 38.8Mbps)
  •  Error Free Pathological Pattern Operation
  •  Rugged "ST" Simplex Optical Interface with Dust Cover
  •  Receiver: Re-Clocked/Line Driven 75 ohm B
  •  Simplex Electrical Interface
  •  +4.5 to +16VDC Power Supply

Evertz 3405FR-BNC
3G/HD/SDI/ASI/MADI/AES Fiber Optic Converter

Evertz 3405

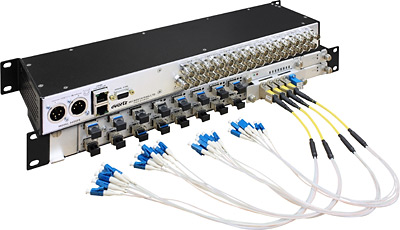

The Evertz 3405FR-BNC is a high-capacity bulk optical conversion platform. With the ability to accommodate 16 Evertz 3405 series SFP's, up to 32 optical to electrical or electrical to optical conversions may be performed in a single frame.
Key Features
  • The 3405FR-BNC can accommodate any 3405 series SFP, allowing the SFP cages to be populated as needed with optical transmit, receive, regenerator or electrical distribution amplifier SFP's.
  • 3405 series SFP's are able to handle ASI, SDI, HD-SDI and 3G digital video signals, as well as other signal rates up to 3 Gig on non-reclocked versions (e.g. MADI). The SFP modules are hot-swappable, allowing for quick servicing or easy reconfiguration or expansion at any time.
  • Accommodates redundant power supplies
  • All active components are hot-swappable
  • SFP modules can be hot-swapped without de-cabling coaxial connections

Evertz 3405PS-6

Evertz 3405PS - Evertz Power Supply

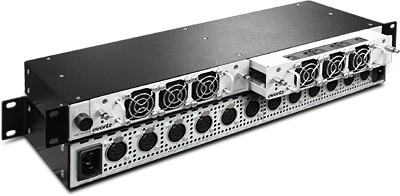

   Evertz 3405PS-6 Six Output Power        Supply Tray for 3405FR Series Frame
Key Features

  • Primary and Redundant DC power for up to six 3405FR series frames or other 12vdc equipment
  • LED indicators display the status of each power supply
  • Front extractable modules, power supplies and fans
  • Auto-ranging power supply that operates from 100V - 240V AC at 50/60Hz
  • Power supply and frame cooling fans are fully redundant and hot-swappable
